MAFB2132422003
$1,699.00

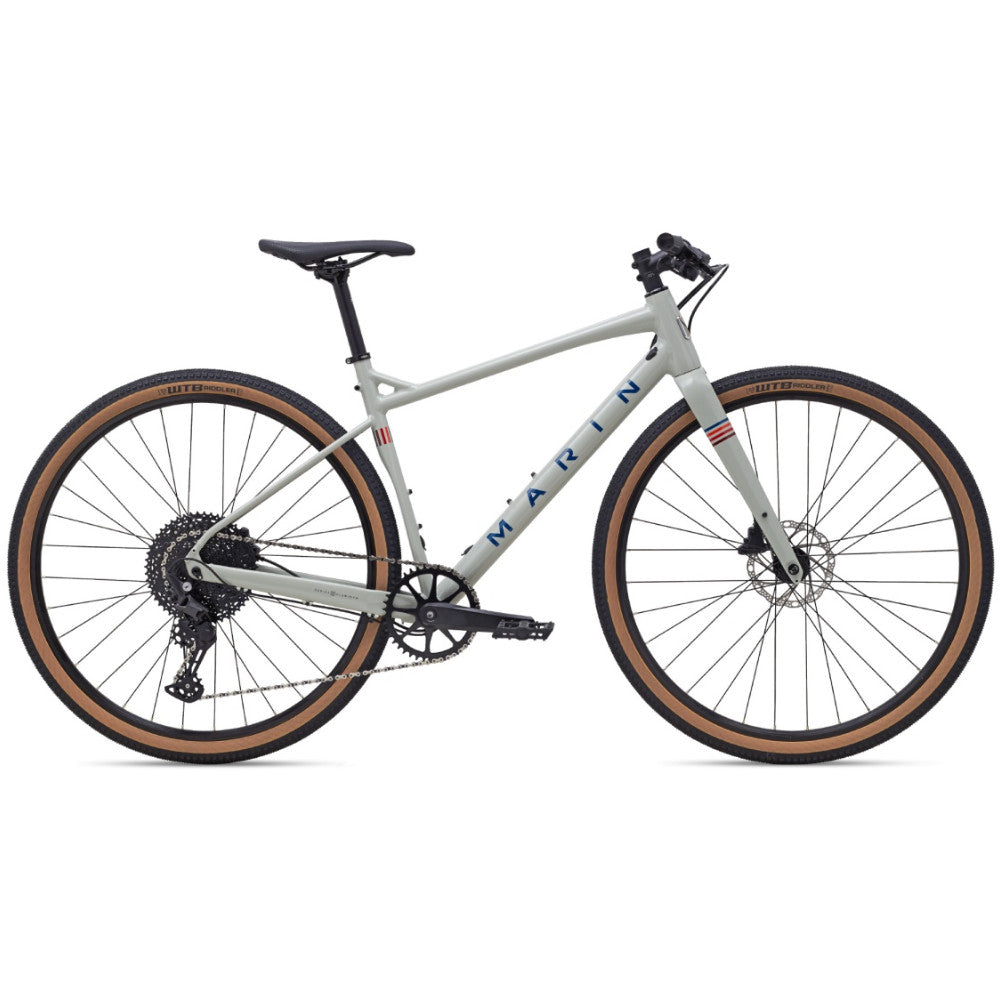

The DSX is a flat bar gravel bike based on Marin’s efficient Gestalt X drop-bar platform with the added comfort of al lower stand over height and the heads-up positioning of a flat handlebar. Mountain and Road bike sensibilities combine into a versatile package perfect for long-distance multi surface riding, commuting and gravel events. Based around a Series 3 6061 aluminum frame with carbon fork and tapered steerer. Internal cable routing adds to the overall clean and stylish aesthetic, there are also portlets for a dropper post to be added as well as eyelets for racks and mudguards. The DSX features the latest flat mount hydraulic disc brake standard for smooth, controlled stopping in all conditions, with minimal maintenance requirements. The 1x11 Drivetrain offers a modern setup with less parts to maintain. Rolling on 700x45mm WTB Riddler gravel tyres (29 x 1.75) with room for 29x2.1” knobbies for those who’s adventures take them further off-road.
| Axles: | Bolt-On Thru-Axles F and R |
|---|---|
| Bottom bracket: | Sealed Cartridge |
| Brakes: | Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor |
| Chain: | KMC X11 |
| Crankset: | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| Derailleur rear: | Shimano Deore 11-Speed |
| Fork: | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Frame: | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| Grip: | Marin MTB |
| Handlebar: | Marin MiniRiser |
| Handlebar stem: | Marin 3D Forged Alloy |
| Headset: | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Hubs: | REAR: Forged Aluminum Alloy, 142x12mm, 6-Bolt Disc, 32H / FRONT: Forged Aluminum, 100x15mm, 6-Bolt Disc, 32H |
| Pedals: | Commute Platform |
| Rim: | Marin Aluminum Double Wall, 21mm Inner, Disc Specific |
| Saddle: | Marin DSX |
| Seat post: | Marin Alloy |
| Spokes: | 14g Black Stainless Steel |
| Wheel size: | 700c |
